Description

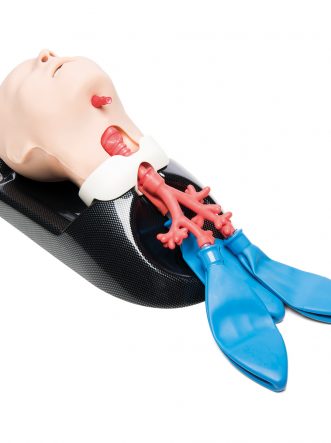

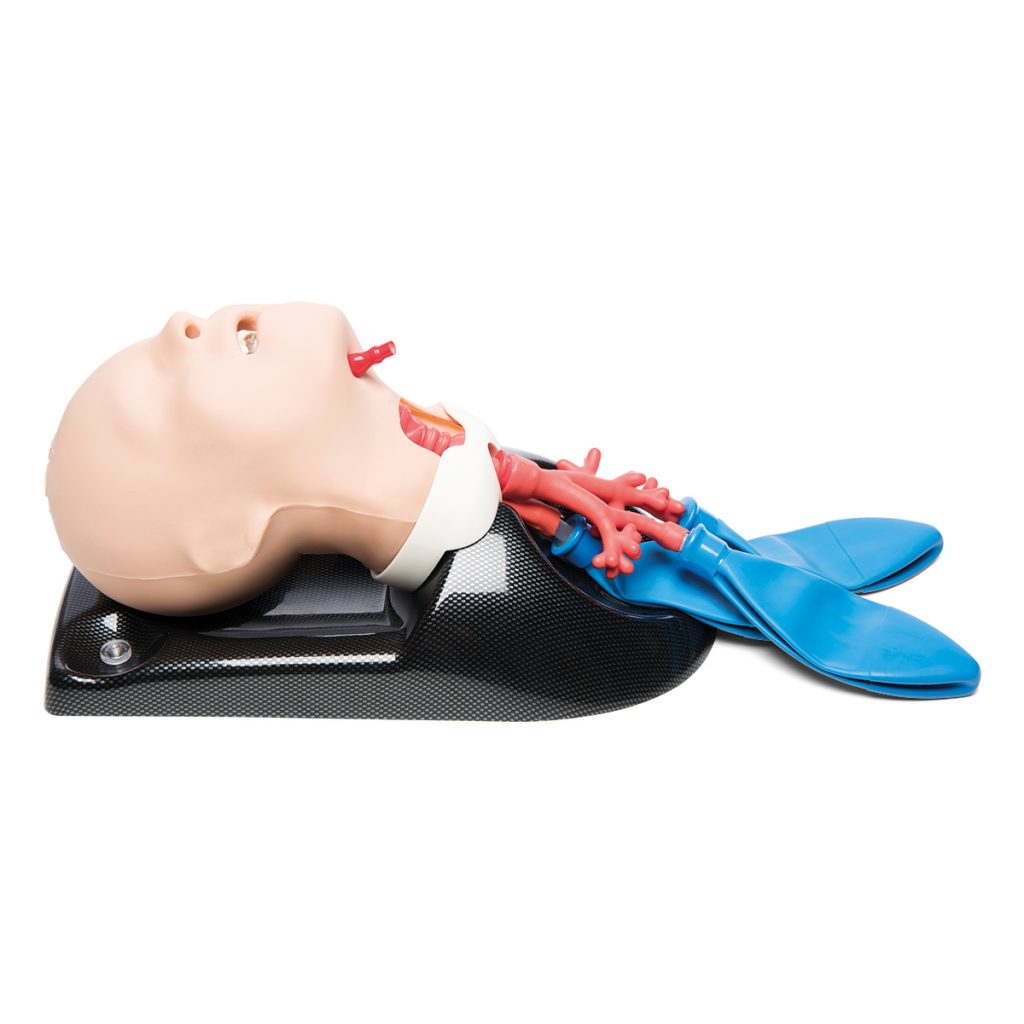

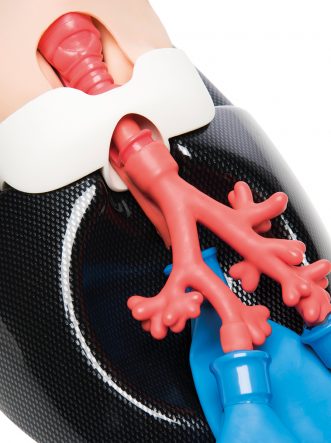

The AirSim Child Combo Bronchi X is the ‘all in-one’ manikin for pediatric airway management. It is ideal for practising oral and nasal intubation training techniques, percutaneous tracheostomy, emergency cricothyroidotomy and bronchoscopy techniques on a six year old child.
Features include:
- Innovative pediatric AirSim® airway and nasal cavity created from DT DICOM data
- Anatomically correct internal features and visually accurate landmarks in airway and nasal passage
- Wraparound replaceable neck skin rotates for up to 20 incisions
- Easy identification of sternal notch, tracheal rings and cricoid and laryngeal cartilages
- Inflatable tongue with lifelike texture can simulate edema
- Silicone skin covering with lifelike texture
- Replaceable lung bags inflate with successful ventilation
- Optional difficult airways available for more advanced training
- Optional subcutaneous fat tissue demonstrates more difficult tracheostomy and cricothyroidotomy procedures
The AirSim Child Combo Bronchi X will provide a solution to your training needs in:
- Needle and surgical cricothyroidotomy
- Percutaneous tracheostomy
- Practising oral and nasal intubation techniques
- Practising laryngeal mask airway and supraglottic device insertion
- Practising combi tube insertion
- Practising double lumen endotracheal tube insertion
- Practising fibre optic intubation and video laryngoscopy
- Practising bag mask ventilation techniques
- Diagnostic bronchoscopy
- Practising lung isolation techniques using left and right endobronchial tubes and bronchial blockers
- Practising lung suctioning techniques
Product components:
- 1 Carrier/storage case
- 1 USB pen drive user manual
- 1 Bottle of TruCorp® lubrication
- 3 Adult lung bags
- 5 Larynx inserts (1 attached, 4 extra)
- 1 Wrap around neck skin (attached)
Manikin can be used with Supraglottic airway devices for airway training.
AirSim® Baby X |
AirSim® Pierre
Robin X
|
AirSim® Child
Combo X
|
AirSim® Child
Combo Bronchi X
|
AirSim® Child
Bronchi X
|
||
Item No. | 1015536 | 1021892 | 1021904 | 1021903 | 1021897 | |
5-year warranty | Yes | Yes | Yes | Yes | Yes | |
Age | 6-month old | 6-month old | 6-year old | 6-year old | 6-year old | |
Direct and video laryngoscopy | Yes | Yes | Yes | Yes | Yes | |
Oral and nasal intubation techniques | Yes | Yes | Yes | Yes | Yes | |
Double lumen endotracheal tube insertion | Yes | Yes | Yes | Yes | Yes | |
Combi tube insertion | Yes | Yes | Yes | Yes | Yes | |
Bag mask ventilation | Yes | Yes | Yes | Yes | Yes | |
Laryngeal mask airway | Yes | Yes | Yes | Yes | Yes | |
Fibre optic intubation | Yes | Yes | Yes | Yes | Yes | |
Diagnostic bronchoscopy | – | – | – | Yes | Yes | |
|
Yes | Yes | Yes | Yes | Yes | |
Supraglottic device insertion | Yes | Yes | Yes | Yes | Yes | |
Lung suctioning | Yes | Yes | Yes | Yes | Yes | |
Needle and surgical cricothyroidotomy | – | – | Yes | Yes | – | |
Percutaneous tracheostomy | – | – | Yes | Yes | – |
