Description

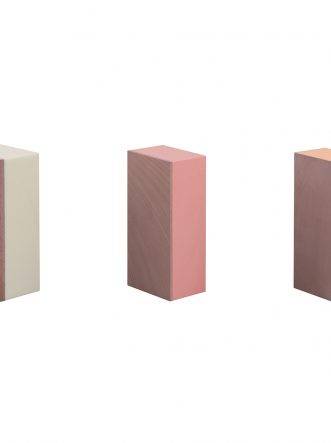

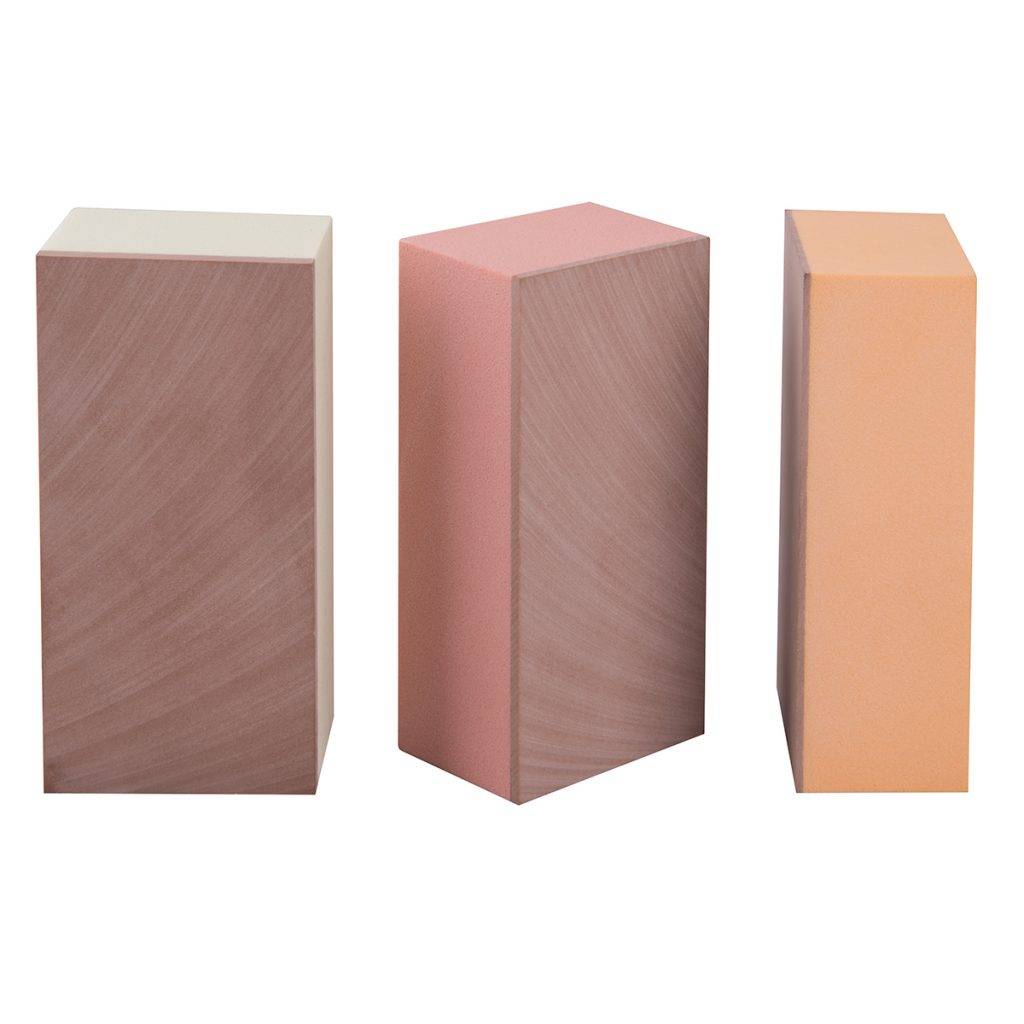

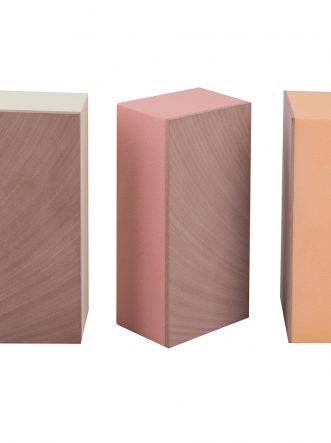

3B Biomechanical Test Blocks
- Use to test implants and devices
- Train the evaluation of bone density
- Simulate different sets of characteristics, i. e. bone density and cortical thickness
Bone density: 10 – 30 PCF (Pounds per Cubic Foot)
The solid rigid polyurethane foam is available in 4 different densities: 10, 15, 20 and 30 PCF.
Cortical thickness: 1 – 3 mm
The cortical shell is simulated by a dense plate on top of each block.
Its density is 40 PCF and three different thicknesses (1, 2 or 3 mm) are
available for each foam density option.
Dimensions:
CP1: 1 mm cortical thickness: 9.5 x 4.5 x 3.1 cm
CP2: 2 mm cortical thickness: 9.5 x 4.5 x 3.2 cm
CP3: 3 mm cortical thickness: 9.5 x 4.5 x 3.3 cm
