Description
3B Biomechanical Test Blocks
- Use to test implants and devices
- Train the evaluation of bone density
- Simulate different sets of characteristics, i. e. bone density and cortical thickness
Bone density: 10 – 30 PCF (Pounds per Cubic Foot)
The solid rigid polyurethane foam is available in 4 different densities: 10, 15, 20 and 30 PCF.
Cortical thickness: 1 – 3 mm
Dimensions:

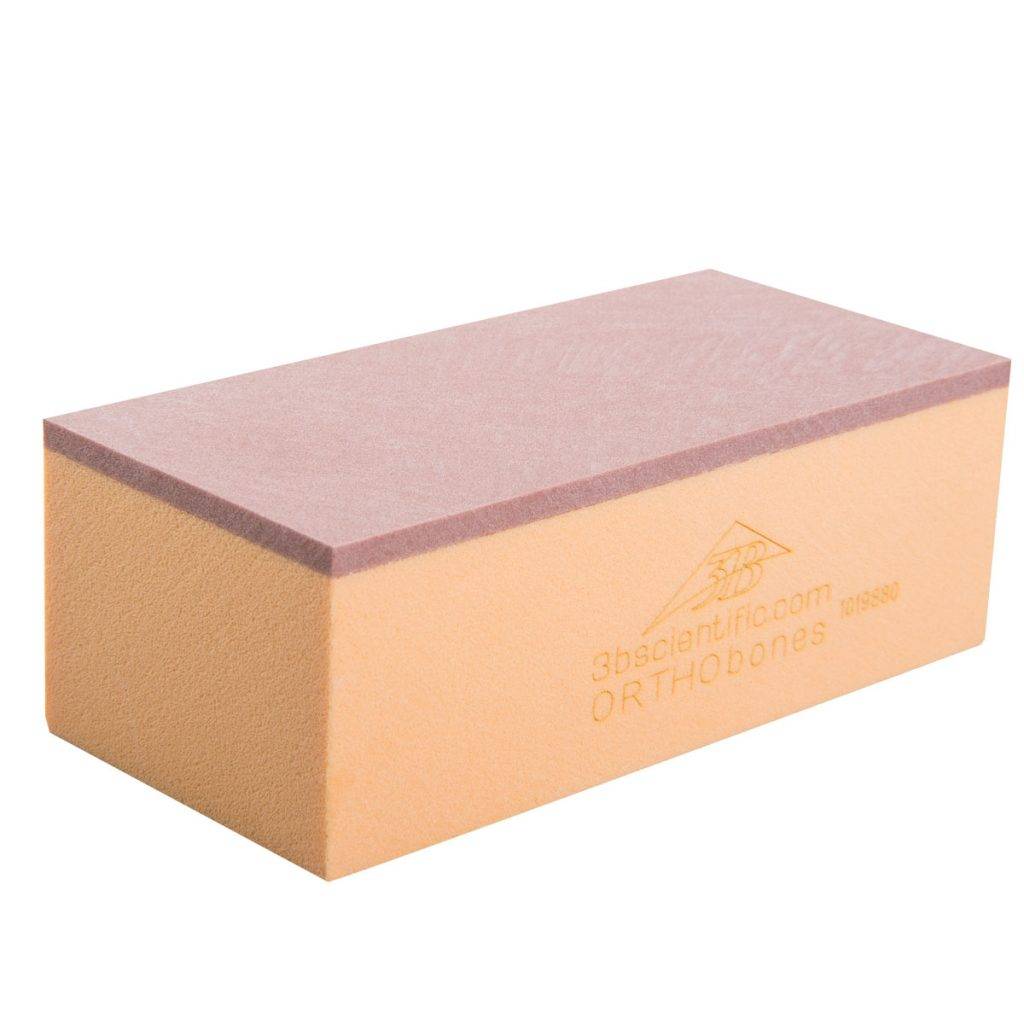

ORTHObones Biomechanical Test Block – 20 PCF, CP3 (1019880)
This 3B Biomechanical Test Block (Item No. 1019880, weight 0.031 kg) is a solid rigid polyurethane foam block used to test orthopedic implants and devices and to train evaluation of bone density.
Bone density: 20 PCF (Pounds per Cubic Foot) — one of four density options available in this range (10, 15, 20, and 30 PCF), simulating different bone density characteristics.
Cortical thickness: 3 mm (CP3) — the cortical shell is simulated by a dense plate (40 PCF) on top of the block, available in 1mm, 2mm, or 3mm thicknesses for each foam density.
Dimensions: 9.5 × 4.5 × 3.3 cm (CP3 variant)
Why Buy from SEM Trainers? SEM Trainers & Systems is an authorised distributor of 3B Scientific / WRS Group products in India with over 30 years of experience supplying medical education resources to 1,500+ institutions across 28 states. We provide pan-India delivery and dedicated after-sales support.
Contact us at [email protected] or call +91-88495 63724 for pricing and availability.
