Description
A phantom designed for physical evaluation of iteratively reconstructed images under low CNR
| Features | 1.The phantom is designed to physically and quantitatively evaluate iteratively reconstructed images in the low CNR area, such as abdomen, where MTF of PSF is less useful / 2.The phantom uses edge spread function (ESF) to calculate MTF of the low CNR images, which facilitate assessing performance properties of iteratively reconstructed images under low CNR |
|---|---|
| Set includes | 1 cylindrical container (200 mm dia.) / 5 measurement plates / 1 rotation holder / 1 fixture for the cylindrical container /1 angle adjustment holder / 1 philips screwdriver / 1 petroleum jelly / screws (spare) / 1 storage case / manual |
| Size (approx.) | dia. 200×250 mm |
| Weight (approx.) | 4.5kg |
| Materials | Acrylic resin, polyurethane |
| Optional parts | 41919-010 Angle adjustment holder (table-top type) |
| APPLICATIONS | CT |
| Update | August 10, 2020 |
CT ERF Phantom HIT (PH-55) — Low CNR Image Quality Evaluation for Iterative Reconstruction
The CT ERF Phantom HIT (Item No. PH-55, 4.5 kg) by Kyoto Kagaku, Japan is purpose-built to physically and quantitatively evaluate iteratively reconstructed images in low contrast-to-noise ratio (CNR) areas — such as the abdomen — where traditional MTF-of-PSF evaluation methods are less useful.

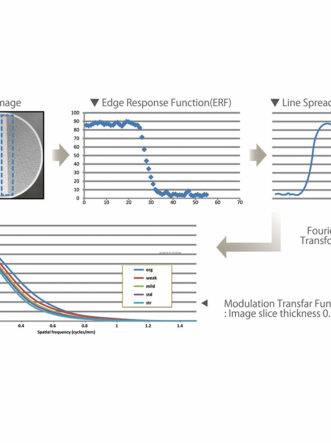

A more accurate evaluation method for modern reconstruction techniques. The phantom uses edge spread function (ESF) to calculate MTF for low CNR images, giving institutions a way to properly assess the performance properties of iteratively reconstructed CT images under low-contrast conditions — an increasingly important QA need as more institutions adopt iterative reconstruction to reduce radiation dose.

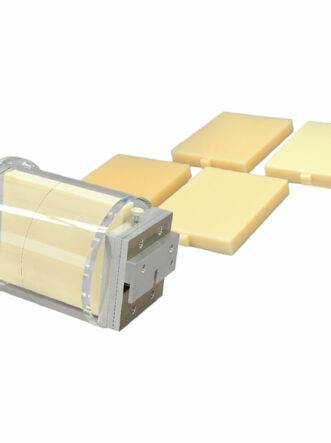

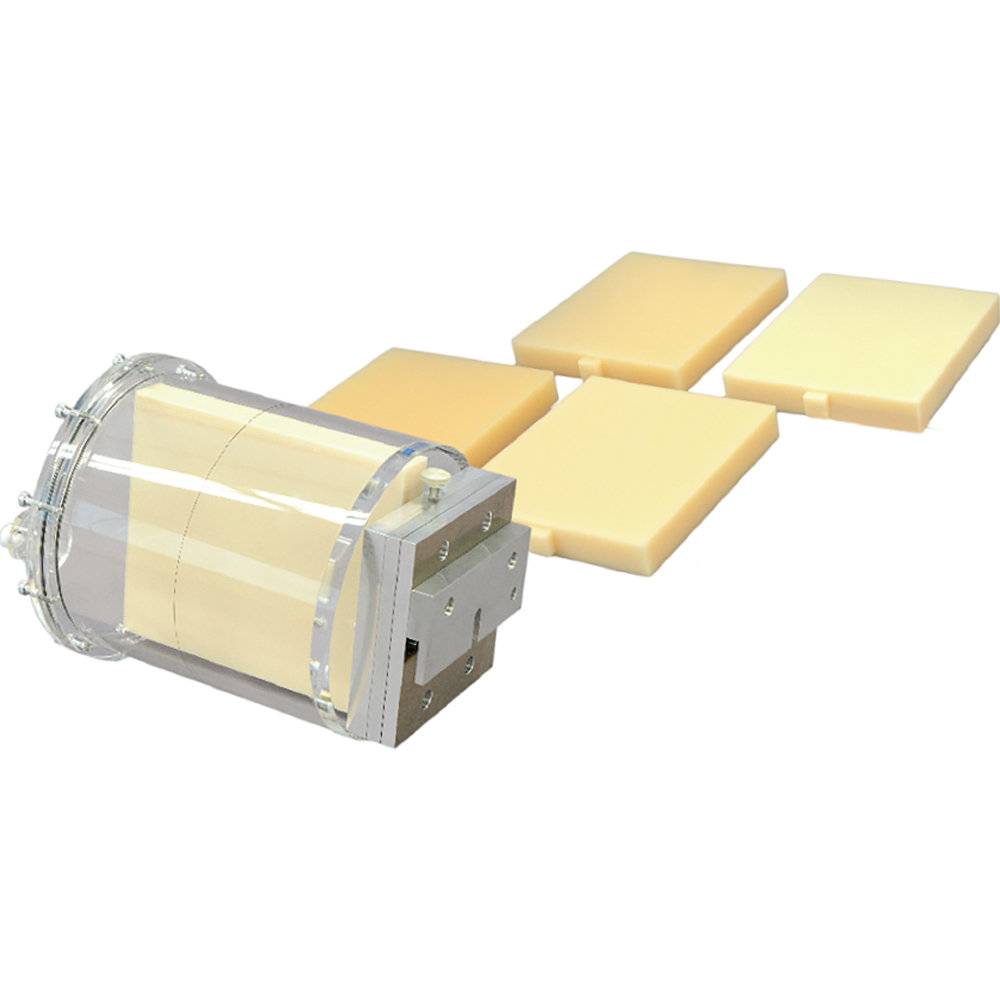

What’s included: cylindrical container (200mm diameter), 5 measurement plates, rotation holder, fixture for the cylindrical container, angle adjustment holder, Phillips screwdriver, petroleum jelly, spare screws, storage case, instruction manual.
Materials: acrylic resin, polyurethane. Size: 200mm diameter × 250mm.

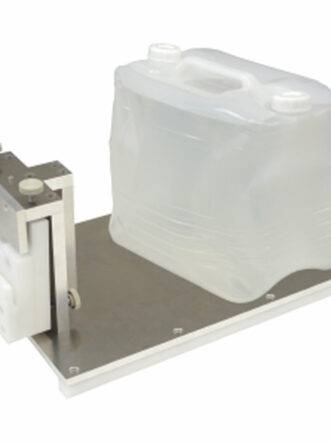

Optional part: angle adjustment holder, table-top type — for institutions that prefer a table-mounted setup over the standard configuration.
Training application: CT.
Why Buy from SEM Trainers? SEM Trainers & Systems is an authorised distributor of Kyoto Kagaku products in India with over 30 years of experience supplying medical simulators and clinical skills trainers to 1,500+ institutions across 28 states. We provide pan-India delivery and dedicated after-sales support.
Frequently Asked Questions
Q: Why is this phantom needed for iterative reconstruction evaluation specifically?
A: Traditional MTF-of-PSF evaluation methods are less useful in low CNR areas like the abdomen. This phantom uses edge spread function (ESF) instead, giving more accurate performance evaluation for iteratively reconstructed images under these conditions.
Q: Is a table-top mounting option available?
A: Yes — an optional table-top type angle adjustment holder is available separately.
