Description
A unique, life size whole body phantom for CT provides a variety of educational application
as well as visual evaluation in finding out optimal scanning conditions
| Features | 1. Radiology absorption and HU number approximate to human body. 2. Main joints have close-to human articulation 3. Phantom can be disassembled into 10 individual parts |
|---|---|
| Training skills / Applications | Plain X-ray / CT /Basic patient positioning |
| Set includes | 1 whole body phantom / 1 head supporter / 1 flat head screwdriver/ 1 set of samaple X-ray / manual |
| Height (approx.) | 165 cm / 65in |
| Packing size (approx.) | W92 x D57 x H38cm, W37 x D23 x H15in / W90 x D63 x H22cm, W36 x D25 x H9in / W89 x D57 x H16cm, W35 x D23 x H6in |
| Weight (approx.) | 50 kg / 110 lb |
| Packing weight (approx.) | 80 kg / 176 lb |
| Materials | Soft tissue: urethane based resin (density: 1.06) Synthetic bone: epoxy resin (density: 1.31) Skull: spoxy resin (density: 1.11) *Phantom has no metal parts or liquid structure |
| Replacement parts | 41350-200-01 head for PH-2B / 41350-200-02 right hand for PH-2&2B / 45350-200-03 left hand PH-2&2B / 41350-200-04 right upper arm for PH-2&2B / 41350-200-05 left upper arm for PH2&2B / 41350-200-06 torso for PH2B / 41350-200-12 right thigh for PH2&2B /41350-200-13 left thigh for PH2&2B / 41350-200-14 right foot for PH2&2B / 41350-200-15 left foot for PH2&2B |
| Optional parts | 41363-070 storage cases (consist of 2 boxes) / 41350-200-16 body plates for PH-2/2B (BMI 32) / 41350-200-17 body plates for PH-2/2B (BMI 40) |
| Related products | PH-2D Bone Fracture Pediatric Phantom PBU-70B PH-2E CT Whole Body Phantom with Pathologies PH-60 Tough Whol;e Body Phantom “PBU-90 RUGGED” PH-2 Whole Boday Phantom “PBU-50” 41350-000-11 Fractured Hand/Forearm Phantom for PH2/2B |
| Publication references | Kim, S., & Jung, H. (2013). A Study on Performance of Low-Dose Medical Radiation Shielding Fiber (RSF) in CT Scans. International Journal Of Technology, 4(2), 178-187. doi:10.14716/ijtech.v4i2.107 |
| Update | July 28, 2020 |
CT Whole Body Phantom “PBU-60” (PH-2B) — Life-Size Radiography & CT Positioning Training

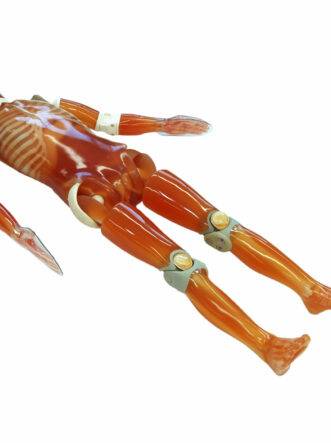

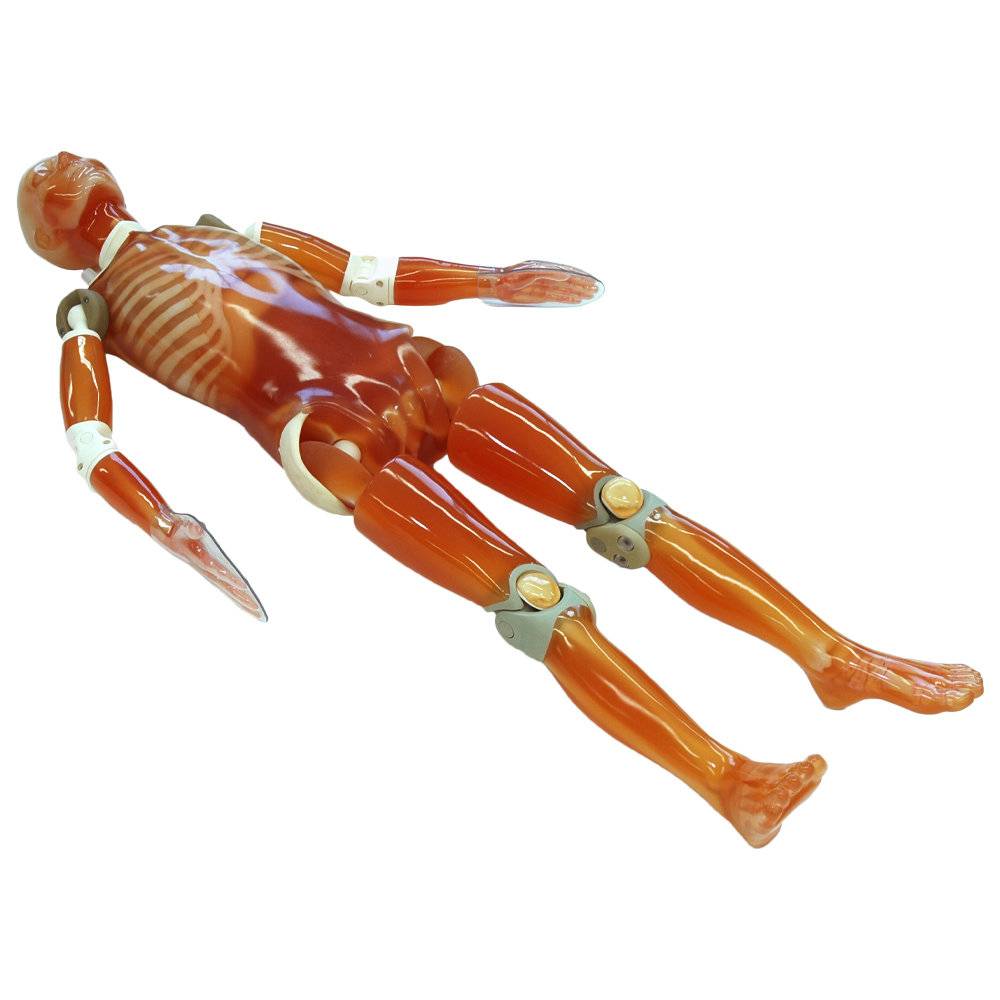

The CT Whole Body Phantom “PBU-60” (Item No. PH-2B, 50 kg, 165 cm height) by Kyoto Kagaku, Japan is a unique, life-size whole body phantom for CT that supports a wide range of educational applications, along with visual evaluation for determining optimal scanning conditions.
Realistic radiological properties. Radiation absorption and Hounsfield Unit numbers are approximate to a real human body, giving students and technologists genuinely representative imaging results rather than simplified approximations — important for training that needs to transfer directly to real clinical scanning.
Realistic articulation and modular design. Main joints have close-to-human articulation, supporting realistic patient positioning practice. The phantom can be disassembled into 10 individual parts, making it easier to store, transport, and selectively replace worn components without needing to handle or ship the full body.

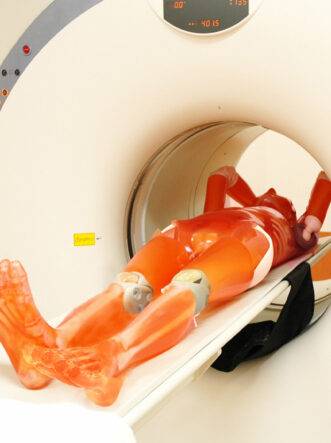

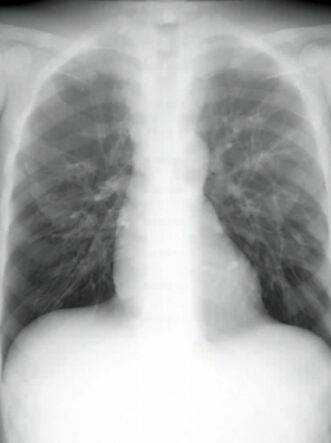

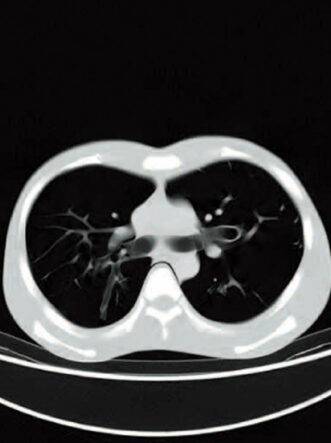

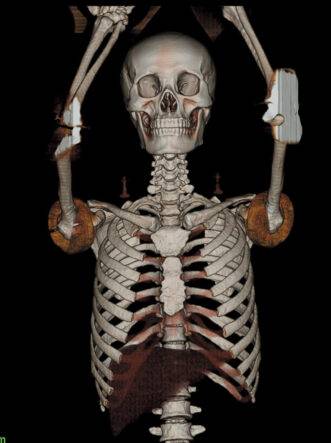

Training applications: plain X-ray, CT, and basic patient positioning.
What’s included: whole body phantom, head supporter, flat head screwdriver, sample X-ray set, instruction manual.
Materials: urethane-based resin (soft tissue), epoxy resin (synthetic bone and skull). No metal parts or liquid structures.
Extensive replacement parts available for the head, right and left hands, right and left upper arms, torso, right and left thighs, and right and left feet — letting institutions replace individual body regions as they wear rather than the whole phantom.
Optional parts: storage cases (2-box set), and body plates for BMI 32 or BMI 40 simulation — letting you expand the phantom for larger-patient scanning training as needed.
Why Buy from SEM Trainers? SEM Trainers & Systems is an authorised distributor of Kyoto Kagaku products in India with over 30 years of experience supplying medical simulators and clinical skills trainers to 1,500+ institutions across 28 states. We provide pan-India delivery and dedicated after-sales support.
Frequently Asked Questions
Q: Can this phantom simulate larger patients for radiation dose training?
A: Yes — optional body plates are available to simulate BMI 32 or BMI 40 patients, letting you train on patient-size variation.
Q: Can individual body parts be replaced if damaged?
A: Yes — replacement parts are available for the head, hands, upper arms, torso, thighs, and feet, so worn components can be replaced individually.
Q: How is the phantom stored and transported?
A: It disassembles into 10 individual parts, and optional 2-box storage cases are available for easier handling and transport.
Contact us at [email protected] or call +91-88495 63724 for pricing and availability.
