Description
Evaluation of spatial resolution if simulated contrast enhanced vessels in CT
| Features | 1. On each plate phantom of 5 mm thickness, five slits of 5 mm length are made to represent vessels 2. Nine variations of vessel width are prepared |
|---|---|
| Training skills / Applications | CT |

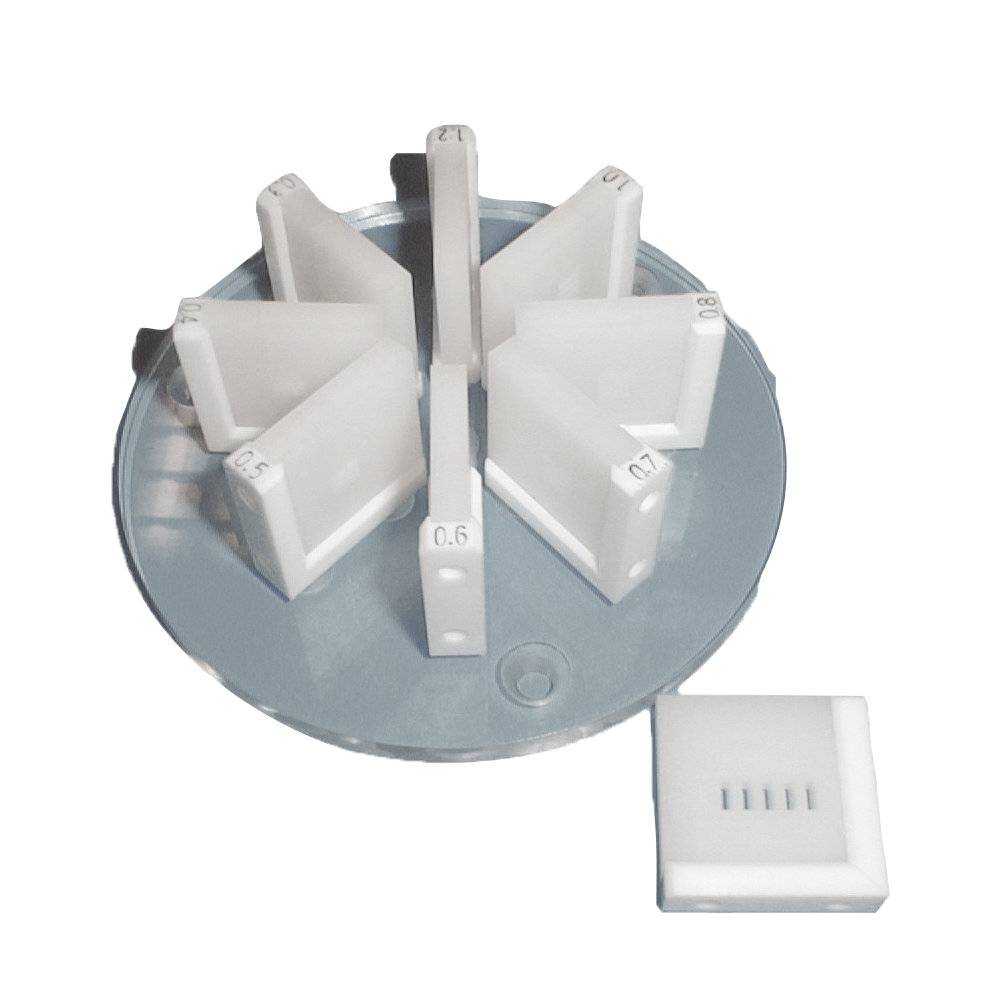

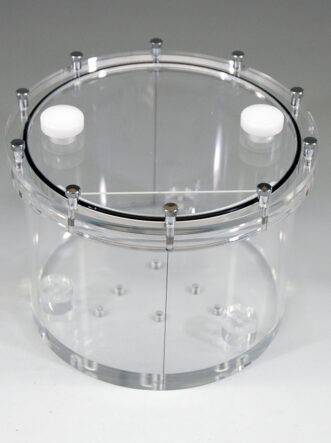

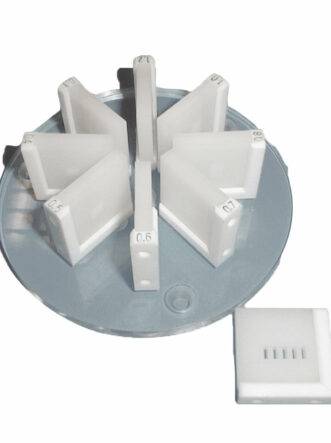

| Set includes | 1 Outer phantom / 9 ladder phantoms / 1 storage case |
| Materials | Measurement region: epoxy resin, hydroxyapatite / Base: acrylic resin |
| Optional parts | 41919-010 Angle adjustment holder (table-top type) |
| Update | August 10, 2020 |
Why Choose the Ladder Phantom for CT Spatial Resolution Evaluation in India?
The Ladder Phantom (Item No. PH-9-2, Brand: Kyoto Kagaku, Japan) evaluates spatial resolution of simulated contrast-enhanced vessels in CT imaging. Each 5mm-thick plate phantom contains five slits of 5mm length representing vessels, with nine variations of vessel width provided across the set — enabling systematic assessment of how well a CT system resolves vessels of different calibers under contrast enhancement.
Training applications:
- CT spatial resolution evaluation
- Contrast-enhanced vessel imaging assessment
Set includes: 1 outer phantom, 9 ladder phantoms, 1 storage case.
Specifications: Materials — measurement region: epoxy resin and hydroxyapatite; base: acrylic resin.
Optional accessory: Angle adjustment holder, table-top type (Part No. 41919-010).
Why Buy from SEM Trainers? SEM Trainers & Systems is an authorized distributor of Kyoto Kagaku products in India with over 30 years of experience supplying CT quality assurance and vascular imaging phantoms to 1,500+ institutions across 28 states. We provide pan-India delivery and dedicated after-sales support.
Frequently Asked Questions
Q: What does this phantom test for? A: It evaluates how well a CT system resolves contrast-enhanced vessels of varying widths, using nine ladder-shaped inserts with slits representing vessels of different calibers.
Q: How do I order from SEM Trainers? A: Contact us at [email protected] or call +91-88495 63724 for pricing and availability.
