Description
Implement theory with practice with pathological findings in this hands-on training phantom
| Features | 1.Radiology absorption and HU number approximate to human body 2. Main joints have close-to human articulation 3. Phantom can be disassembled into 10 individual parts |
|---|---|
| Training skills / Applications | Plain X-ray / CT /Basic patient positioning |
| Case / Pathology | Refer to PDF (Anatomy and Pathologies) |
| Set includes | 1 whole body phantom / 1 head supporter / 1 flat head screwdriver/ 1 set of samaple X-ray / manual |
| Height (approx.) | 165 cm / 65in |
| Packing size (approx.) | W92 x D57 x H38cm, W37 x D23 x H15in W90 x D63 x H22cm, W36 x D25 x H9in W89 x D57 x H16cm, W35 x D23 x H6in |
| Weight (approx.) | 50 kg / 110 lb |
| Packing weight (approx.) | 80 kg / 176 lb |
| Materials | Soft tissue: urethane based resin (density: 1.06) Synthetic bone: epoxy resin (density: 1.31) Skull:epoxy resin (density: 1.11) *Phantom has no metal parts or liquid structure |
| Replacement parts | 41350-200-02 right hand for PH-2&2B / 45350-200-03 left hand PH-2&2B / 41350-200-04 right upper arm for PH-2&2B / 41350-200-05 left upper arm for PH2&2B / 41350-200-12 right thigh for PH2&2B /41350-200-13 left thigh for PH2&2B / 41350-200-14 right foot for PH2&2B / 41350-200-15 left foot for PH2&2B |
| Optional parts | 41363-070 storage cases (consist of 2 boxes) / 41350-200-16 body plates for PH-2/2B (BMI 32) / 41350-200-17 body plates for PH-2/2B (BMI 40) |
| Related products | PH-2D Bone Fracture Pediatric Phantom PBU-70B PH-2B CT Whole Body Phantom “PBU-60” PH-60 Tough Whol;e Body Phantom “PBU-90 RUGGED” PH-2 Whole Boday Phantom “PBU-50” 41350-000-11 Fractured Hand/Forearm Phantom for PH2/2B |
| Publication references | Kim, S., & Jung, H. (2013). A Study on Performance of Low-Dose Medical Radiation Shielding Fiber (RSF) in CT Scans. International Journal Of Technology, 4(2), 178-187. doi:10.14716/ijtech.v4i2.107 |
| Update | July 28, 2020 |

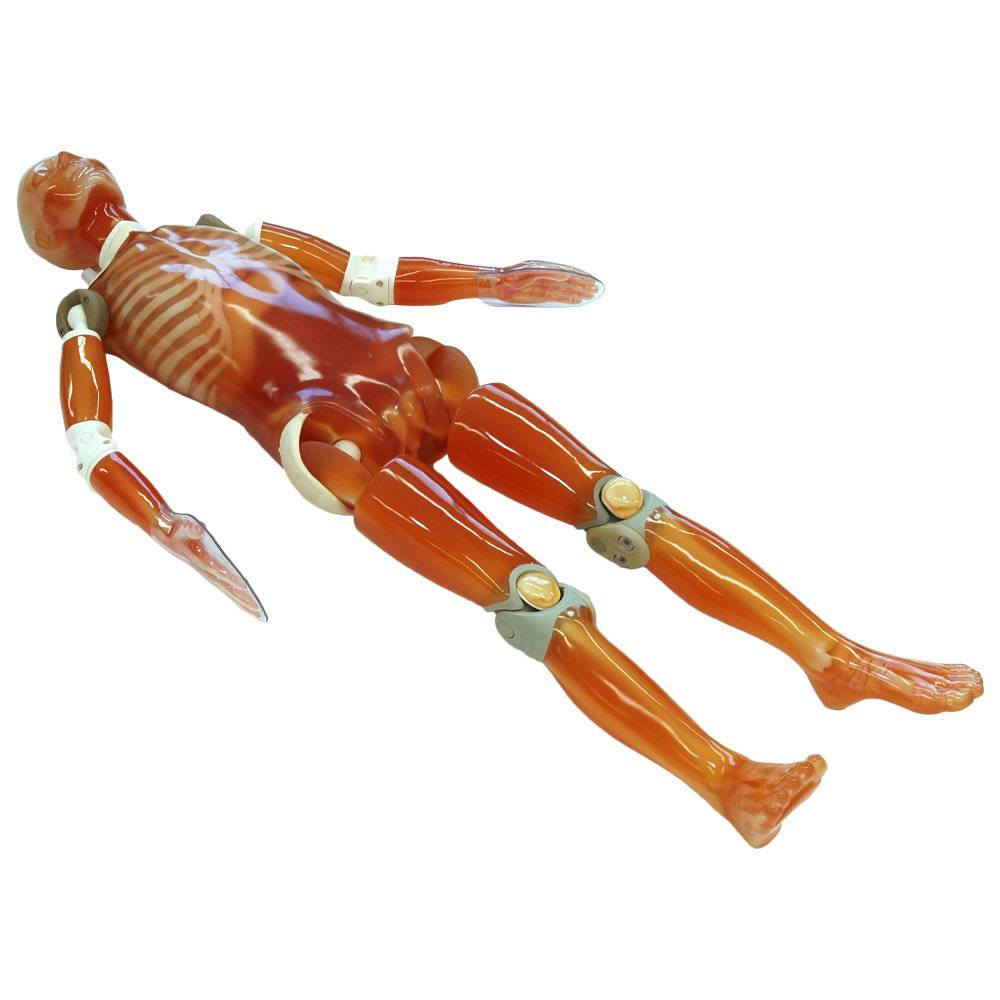

CT Whole Body Phantom with Pathologies (PH-2E) — Hands-On Pathological Findings Training
The CT Whole Body Phantom with Pathologies (Item No. PH-2E, 50 kg, 165 cm height) by Kyoto Kagaku, Japan lets institutions implement theory with practice, giving students hands-on training identifying real pathological findings — not just normal anatomy.
Built on the same realistic foundation as the standard whole body phantom. Radiation absorption and Hounsfield Unit numbers are approximate to a real human body, main joints have close-to-human articulation, and the phantom disassembles into 10 individual parts for easier handling and storage.

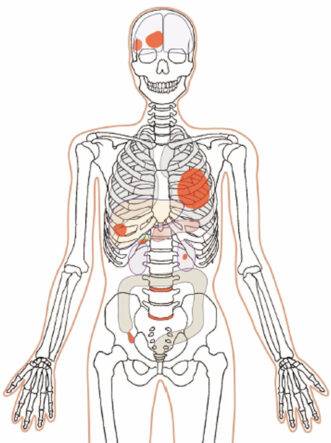

Embedded pathological findings for diagnostic training. [List specific pathologies and their locations here — confirm from Kyoto Kagaku’s Anatomy and Pathologies reference document]. This lets students practice detecting and interpreting real pathological findings on a phantom that behaves and images like a real patient, closing the gap between classroom anatomy and clinical diagnostic reasoning.
Training applications: plain X-ray, CT, and basic patient positioning.
What’s included: whole body phantom, head supporter, flat head screwdriver, sample X-ray set, instruction manual.
Materials: urethane-based resin (soft tissue), epoxy resin (synthetic bone and skull). No metal parts or liquid structures.
Replacement parts available for the right and left hands, right and left upper arms, right and left thighs, and right and left feet.
Optional parts: storage cases (2-box set), and body plates for BMI 32 or BMI 40 simulation.
Why Buy from SEM Trainers? SEM Trainers & Systems is an authorised distributor of Kyoto Kagaku products in India with over 30 years of experience supplying medical simulators and clinical skills trainers to 1,500+ institutions across 28 states. We provide pan-India delivery and dedicated after-sales support.
Frequently Asked Questions
Q: What’s the difference between this and the standard PBU-60 whole body phantom?
A: This version includes embedded pathological findings for diagnostic training. Contact our team for the full anatomy and pathology reference document detailing exactly what’s included.
Q: Can individual body parts be replaced?
A: Yes — replacement parts are available for the hands, upper arms, thighs, and feet.
Contact us at [email protected] or call +91-88495 63724 for pricing and availability.
