Description
New phantom material is designed for rough handling,
improved durability and less maintenance
| Features | 1.Radiology absorption and HU approximate to human body 2.Main joints have close-to human articulation 3.Phantom can be disassembled into 10 individual parts |
|---|---|
| Training skills / Applications | Plain X-ray Basic patient positioning Basic CT |
| Set includes | 1 whole body phantom / 1 head supporter / 1 flat head screwdriver/ 1 set of sample X-ray / manual |
| Height (approx.) | 165cm / 65 in |
| Packing size (approx.) | W92 x D57 x H38 cm / 36×22×15 inch W90 x D63 x H22 cm / 35×25×8.7 inch W89 x D57 x H16 cm / 35×22×6.3 inch |
| Weight (approx.) | 50 kg / 110 lb |
| Packing weight (approx.) | 80 kg / 176 lb |
| Materials | Soft tissue: urethane based resin (specific gravity: 1.12) |
| Optional parts | 41363-070 storage cases (consist of 2 boxes) / 41350-200-16 body plates for PH-2/2B (BMI 32) / 41350-200-17 body plates for PH-2/2B (BMI 40) |
| Related products | CT Whole Body Phantom “PBU-60” CT Whole Body Phantom with Pathologies Pediatric Whole Body Phantom “PBU-70” |
| Notes | PBU-90 allows training scenarios that involve rough handling. Details of the bones in the hands and the feet are simplified compared to those of PBU-50/60 for increased durability. |
| Update | July 28, 2020 |
Why Choose the Tough Whole Body Phantom “PBU-90 Rugged” for High-Durability X-Ray and CT Training in India?

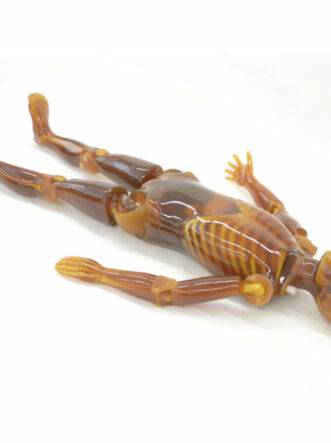

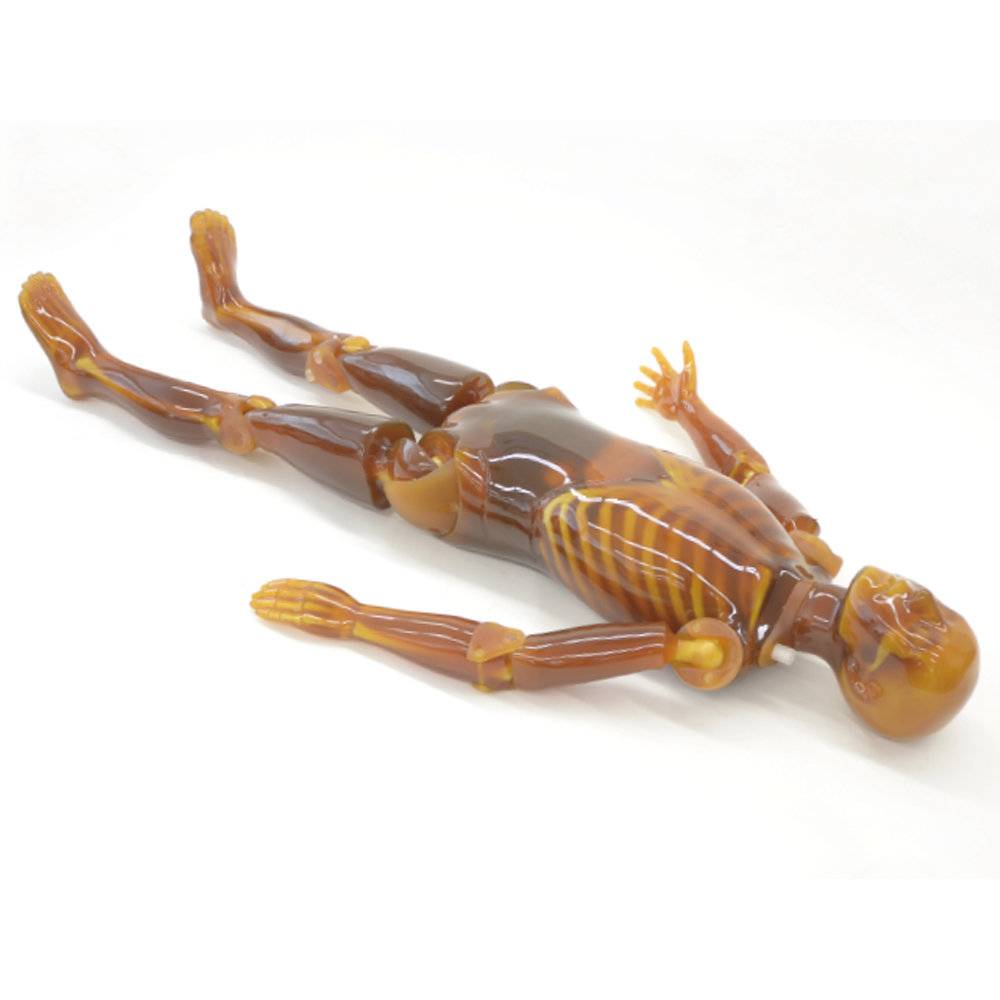

The Tough Whole Body Phantom PBU-90 “Rugged” (Item No. PH-60, Brand: Kyoto Kagaku, Japan) uses new phantom material engineered for rough handling, improved durability, and less maintenance. Radiation absorption and HU values closely approximate the human body, and main joints feature close-to-human articulation. The phantom disassembles into 10 individual parts for handling and study.
Important design tradeoff: To achieve increased durability for rough-handling training scenarios, bone detail in the hands and feet is deliberately simplified compared to the PBU-50/60 phantoms. This makes PBU-90 ideal for scenarios where the phantom will see frequent, heavy classroom use, but institutions requiring fine hand/foot bone detail should consider the standard PBU-50/60 line instead.
Training applications:
- Plain X-ray
- Basic patient positioning
- Basic CT

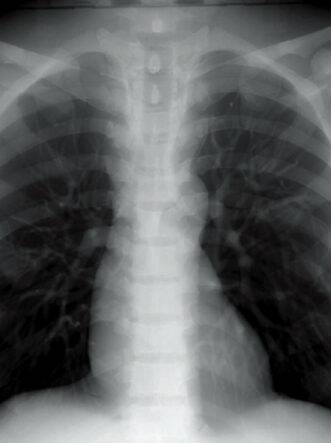

Set includes: 1 whole body phantom, 1 head supporter, 1 flat head screwdriver, sample X-ray data set, manual.
Specifications:
- Height approx. 165cm (65in)
- Packing size approx. (3 boxes): W92×D57×H38cm (36×22×15in) / W90×D63×H22cm (35×25×8.7in) / W89×D57×H16cm (35×22×6.3in)
- Weight approx. 50kg (110lb)
- Packing weight approx. 80kg (176lb)
- Materials: Soft tissue — urethane-based resin (specific gravity 1.12)
Optional accessories: Storage cases (2-box set, 41363-070); body plates for PH-2/2B at BMI 32 (41350-200-16) or BMI 40 (41350-200-17).
Why Buy from SEM Trainers? SEM Trainers & Systems is an authorized distributor of Kyoto Kagaku products in India with over 30 years of experience supplying rugged, high-use radiology training phantoms to 1,500+ institutions across 28 states. We provide pan-India delivery and dedicated after-sales support.
Frequently Asked Questions
Q: How does PBU-90 differ from the standard PBU-50/60 phantoms? A: PBU-90 uses more durable materials for rough handling, but simplifies hand and foot bone detail compared to PBU-50/60 to achieve that durability.
Q: How do I order from SEM Trainers? A: Contact us at [email protected] or call +91-88495 63724 for pricing and availability.
