Description
A phantom for determining imagining conditions and image processing parameters for moving images such as IVR
| Features | Signals placed on a rotating disk for determining imagining conditions and image processing parameters for moving images Using moving signals to analyze the residual images and lags Metallic ball for alignment Signals with four different contrast enables visual evaluation in low contrast Come with data analysis software which use imageJ |
|---|---|
| Training skills / Applications | Rate of rotation:4 /minute *Rate 4rpm is based on cardiac movement of 20mm/s Internal signal:20.9mm/s external signal:27.2mm/s Power supply:AC100V 50/60Hz Consumption:10W |
| Set includes | 1 control unit / 1 disc phantom / 1 set of cable and plug / 1 analysis software / 1 carrying case / manual |
| Size (approx.) | W200 x D185 x H67mm |
| Weight (approx.) | 855 g |
| Power source | AC100V 50/60Hz |
| Power requirements (approx.) | 10W |
| Production ＆ Development Supervision | Keisuke Kondo Associate Professor Radiological Sciences Komazawa University, Japan |
| Update | April 5, 2022 |
Why Choose the Moving Phantom for Residual Image Evaluation KS-III for IVR Imaging QA in India?
The Moving Phantom for Residual Image Evaluation KS-III (Item No. PH-81, Brand: Kyoto Kagaku, Japan) determines optimal imaging conditions and image processing parameters for moving images, such as those used in IVR (Interventional Radiology). Developed under the supervision of Keisuke Kondo, Associate Professor, Radiological Sciences, Komazawa University, Japan.

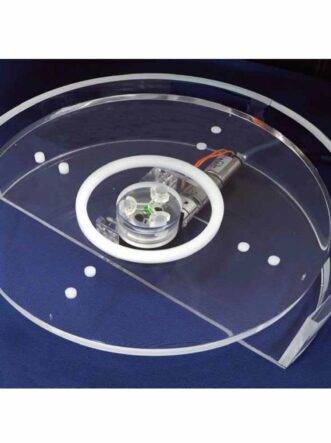

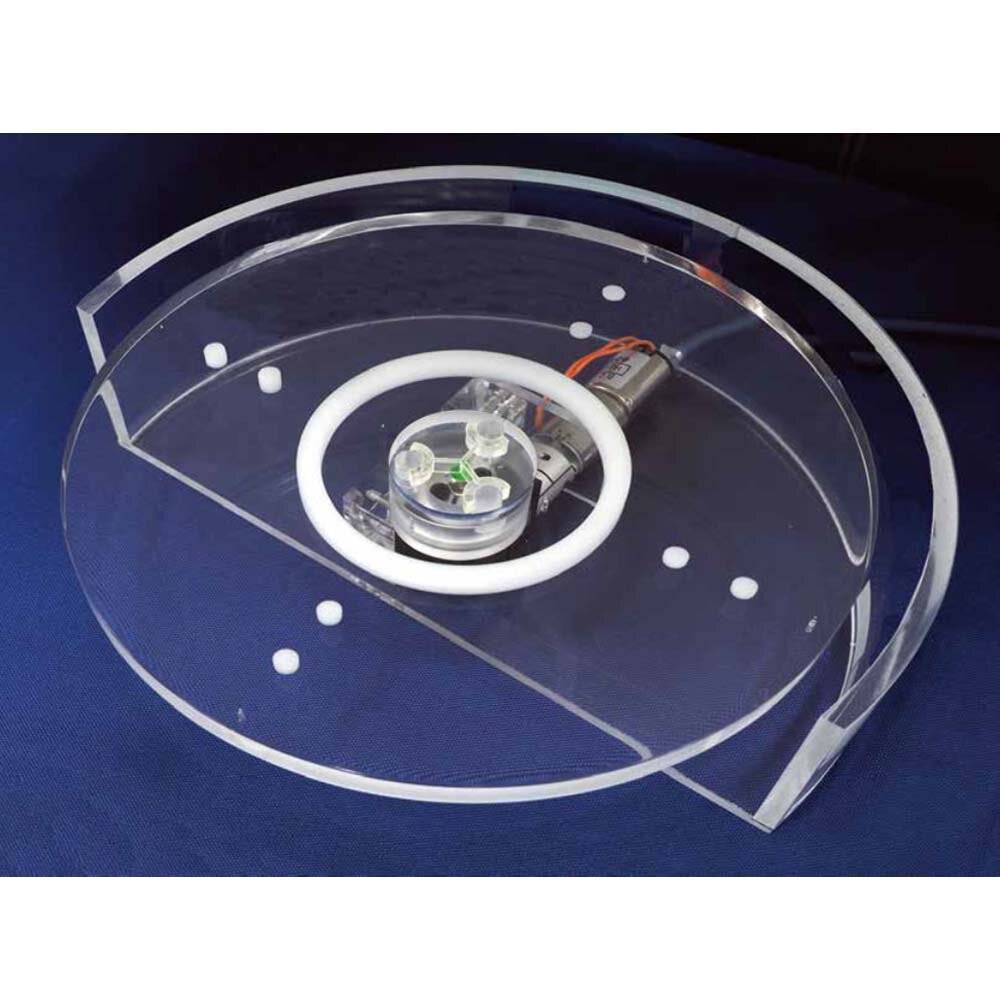

Test signals are mounted on a rotating disk to analyze residual images and motion lag under realistic moving-image conditions. A metallic ball provides an alignment reference, and signals presented at four different contrast levels enable visual evaluation of low-contrast detectability. The phantom comes with data analysis software built on ImageJ.
Training applications:
- IVR image quality and processing parameter evaluation
- Residual image and motion lag analysis
- Low-contrast visual evaluation
Technical parameters: Disk rotation rate 4/minute (based on a cardiac movement reference of 20mm/s); internal signal speed 20.9mm/s; external signal speed 27.2mm/s.
Set includes: 1 control unit, 1 disc phantom, cable and plug set, 1 analysis software (ImageJ-based), 1 carrying case, manual.
Specifications:
- Size approx. W200×D185×H67mm
- Weight approx. 855g
- Power source: AC100V, 50/60Hz — note: requires a step-down transformer/voltage converter for use on India’s 230V mains
- Power consumption: approx. 10W
Why Buy from SEM Trainers? SEM Trainers & Systems is an authorized distributor of Kyoto Kagaku products in India with over 30 years of experience supplying radiology QA and imaging evaluation equipment to 1,500+ institutions across 28 states. We provide pan-India delivery and dedicated after-sales support.
Frequently Asked Questions
Q: Can this be used directly on Indian mains power? A: The unit is rated AC100V, matching Japanese mains voltage — a step-down transformer or voltage converter is required for use on India’s 230V supply. Contact us to confirm compatible power accessories.
Q: What is ImageJ, and why does the phantom come with it? A: ImageJ is a widely used, open-source scientific image analysis platform. The phantom’s included analysis software is built on ImageJ to process residual image and motion lag data captured during testing.
Q: How do I order from SEM Trainers?A: Contact us at [email protected] or call +91-88495 63724 for pricing and availability.
