MrTEEmothy® Standard Transesophageal Echocardiography Simulator

Item No. 1022128

Weight

7 kg

Dimensions 60 x 36 x 22 cm
MPN: TEE-MST-01

Description

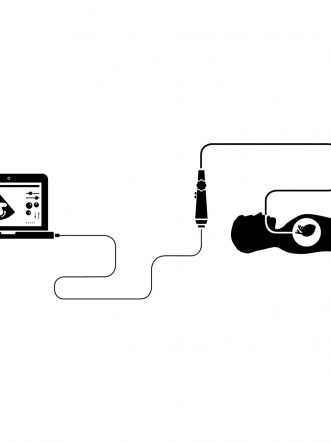

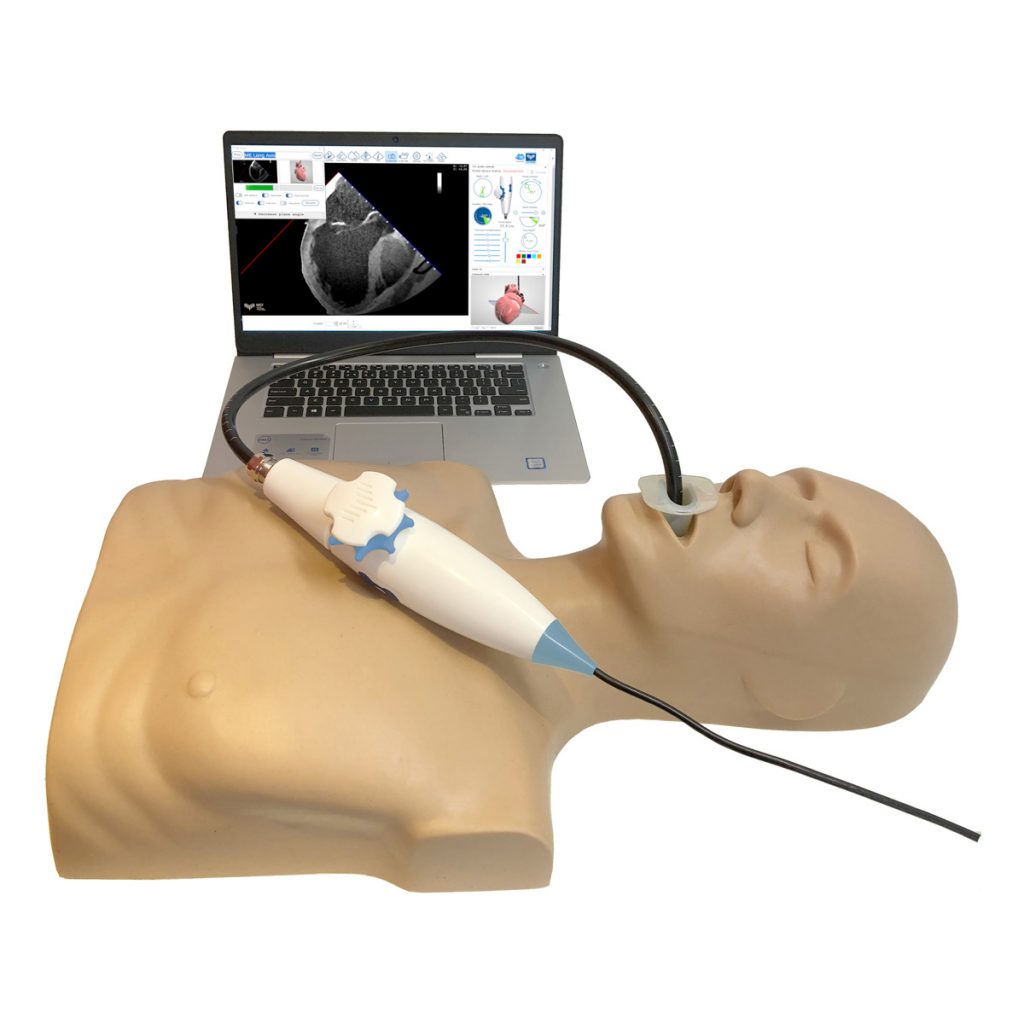

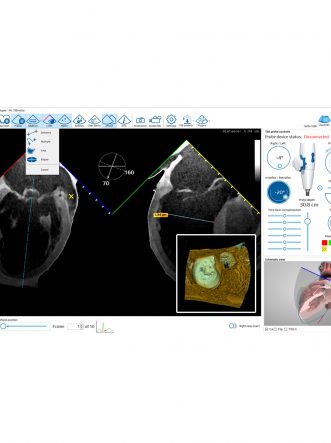

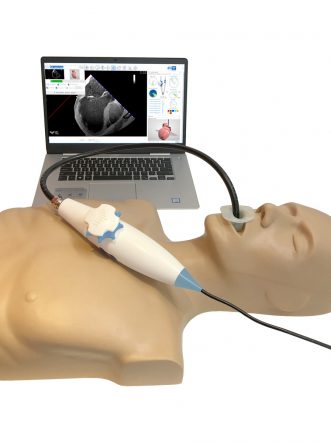

The transesophageal echocardiography (TEE) simulator MrTEEmothy® is composed of a phantom and a TEE probe, connected to a dedicated laptop (included) by a USB cable. Advanced software and 3D visualization were specifically developed for the CT scan dataset. The screen interface shows not only 2D cross–sections similar to TEE images, but also the components of the probe motion such as probe depth, bends, rotation or the angle of the imaging plane.

The device is used with a laptop therefore is fully mobile and can be taken to any teaching location. It is easily connected to an external monitor, which allows for a simultaneous training of many students.

  • MrTEEmothy® advantages and innovation were confirmed by a European patent  (EP2538398)
  • Suitable for training students, residents, cardiologists, anesthetists and intensive care  specialists who want to obtain skills without discomfort and the risk of unnecessary harm to patients
  • Easily connected to a large monitor for a group training

The advantages of MrTEEmothy®:

  • Capability to use the CT data from a range of real patients with numerous pathologies
  • Biplane option showing two simultaneous sections steered independently – as in contemporary 3D echo machines
  • An advanced game-like module can be used to practice and test the ability to obtain the standard TEE views recommended by the imaging guidelines
  • Anatomical differences from patient to patient allow the traininig of individual cases
  • Realistic feeling of the probe operation in a patient thanks to the unique software based on a three-dimensional dataset obtained from CT

Training benefits:

  • Learning the TEE normal and pathological anatomy
  • Pointing anatomical details with color markers positioned in three-dimensional space
  • Practicing optimal acquisition and recording of standard TEE views
  • Interpretation of individual pathology
  • Performing measurements
  MrTEEmothy® Standard  MrTEEmothy® Expert
Article number  1022128 1022130
Hardware
MrTEEmothy® torso
 YES  YES
TEE simulation USB probe
(accuracy of ±0.5mm in depth measurement
and ±1º in plane rotation angle)
 YES  YES
DELL laptop with a pre-installed software
 YES  YES
USB ECHO panel
 YES

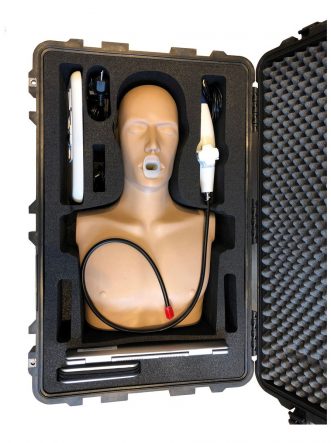

Transportation case
 YES  YES
Warranty 1 year for hardware
2 years for hardware
& software
Software
2D and cross-plane imaging
 YES  YES
Measurements package
 YES  YES
Probe position indicators
 YES  YES
Cartoon 3D model with probe and plane orientation
 YES  YES
User color markers
 YES  YES
Trainer with examination module
 YES
Color flow module
 YES
3D TEE viewer simulator
 YES
Cases
One normal and one pathology case
 YES  YES
Additional 4 pathology cases
 YES
