Description

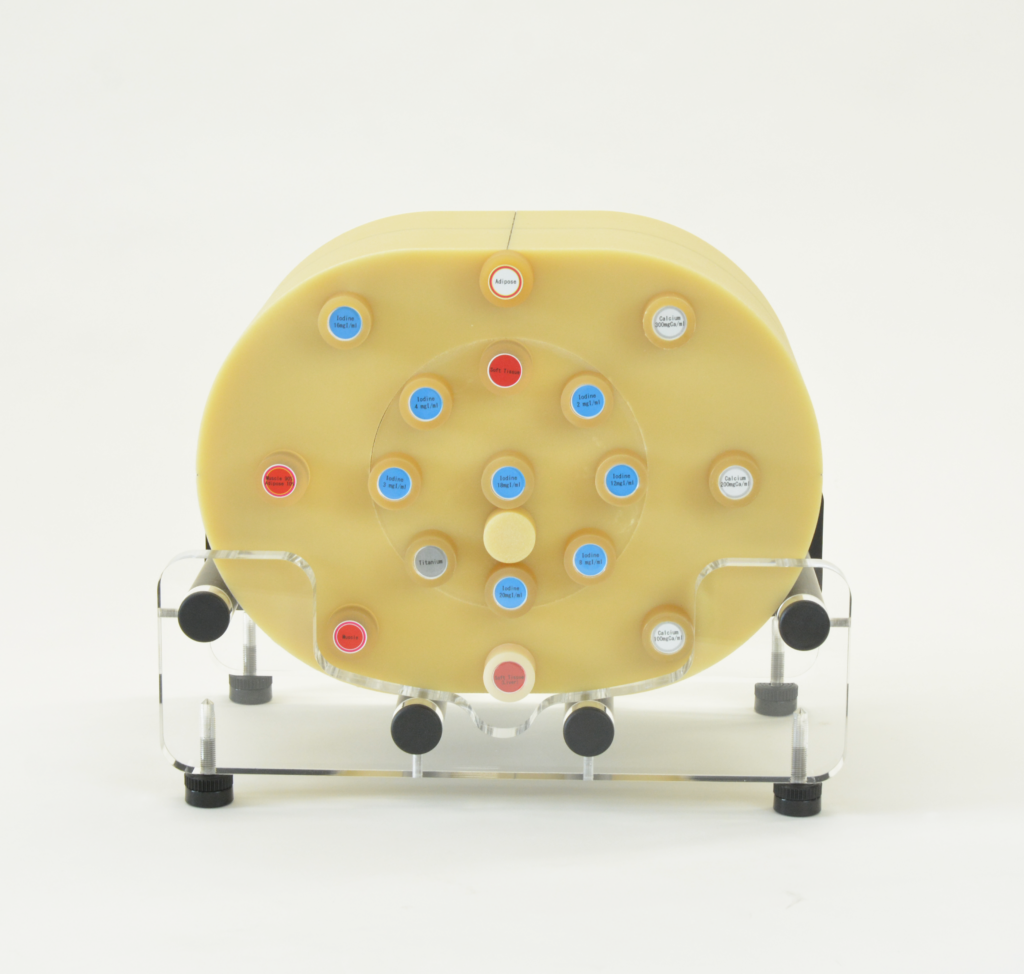

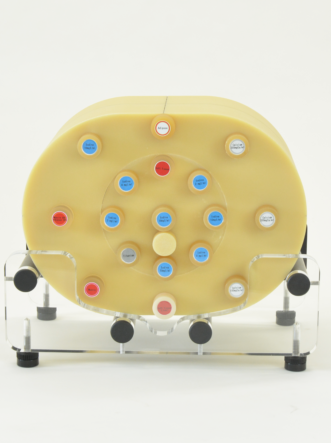

“Aqua Slab” CTQA phantom with equidistance placement of inserts, meeting international recommendation.
| Features | 1.The sectional areas of the assembled phantom with the truck phantom and the independently used inner phantoms are equal to those of the CTDI body and the head phantom respectively.

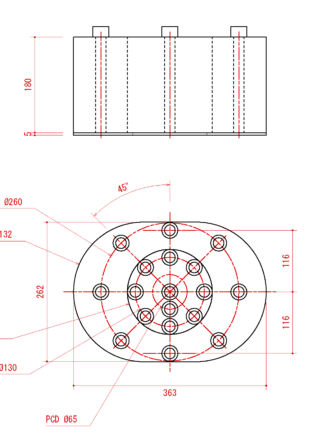

2.The holes to accommodate sample inserts and dosimeters for evaluation are placed concentrically at equidistance from the isocenter, along with the one placed off the center, meeting international recommendation for CTQA. |
|---|---|
| Training skills / Applications | ME-CT image analysis protocol / Metal artifact reduction / Reduction of contrast media |
| Size (approx.) | Ｗ36.3 x D18 x H26.2cm |
| Packing size (approx.) | W36.3 x D26.2 x H18.0 cm/W14.3 x D10.3 x H7.1 in |
| Weight (approx.) | 23kg |
| Packing weight (approx.) | W44 x D36 x H42cm / W17.3 x D14.2 x H16.5in |
| Materials | Polyurethane |
| Optional parts | Angle adjustment holder |
| Related products | Multi Energy CT Quality Assurance Phantom (TR-J) |
| Production ＆ Development Supervision | Katsuhiro Ichikawa, Ph.D., / Institute of Medical, / Pharmaceutical and Health Sciences, / Kanazawa University |
| Update | July 18, 2020 |
Why Choose the Multi Energy CT Quality Assurance Phantom (TR-A) for ME-CT Protocol Evaluation in India?
The Multi Energy CT Quality Assurance Phantom TR-A (Item No. PH-75A, Brand: Kyoto Kagaku, Japan) is an “Aqua Slab” CT QA phantom with insert placement engineered to meet international recommendations for multi-energy CT quality assurance. Developed under the supervision of Katsuhiro Ichikawa, Ph.D., Institute of Medical, Pharmaceutical and Health Sciences, Kanazawa University.
The assembled phantom (trunk phantom plus inner phantoms) matches the cross-sectional areas of standard CTDI body and head phantoms when used independently. Sample insert and dosimeter holes are placed concentrically at equal distance from the isocenter, along with one off-center position — meeting international CT QA design recommendations for accurate, standardized evaluation.
Training applications:
- ME-CT (multi-energy CT) image analysis protocol development
- Metal artifact reduction evaluation
- Contrast media reduction assessment
Specifications:
- Size approx. W36.3×D18×H26.2cm
- Packing size approx. W44×D36×H42cm (W17.3×D14.2×H16.5in)
- Weight approx. 23kg
- Materials: Polyurethane
Optional accessory: Angle adjustment holder.
Why Buy from SEM Trainers? SEM Trainers & Systems is an authorized distributor of Kyoto Kagaku products in India with over 30 years of experience supplying multi-energy CT quality assurance equipment to 1,500+ institutions across 28 states. We provide pan-India delivery and dedicated after-sales support.
Frequently Asked Questions
Q: What does “meeting international recommendation” mean for this phantom’s design? A: The insert and dosimeter holes are positioned concentrically at equal distance from the isocenter, plus one off-center position — a layout aligned with international CT QA design standards for multi-energy protocols.
Q: How do I order from SEM Trainers? A: Contact us at [email protected] or call +91-88495 63724 for pricing and availability.
