Description

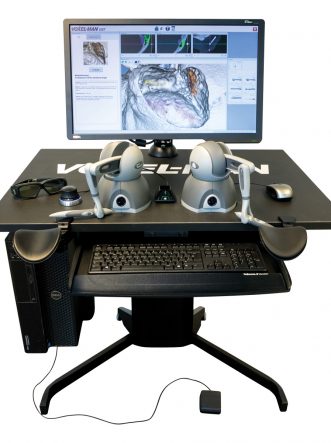

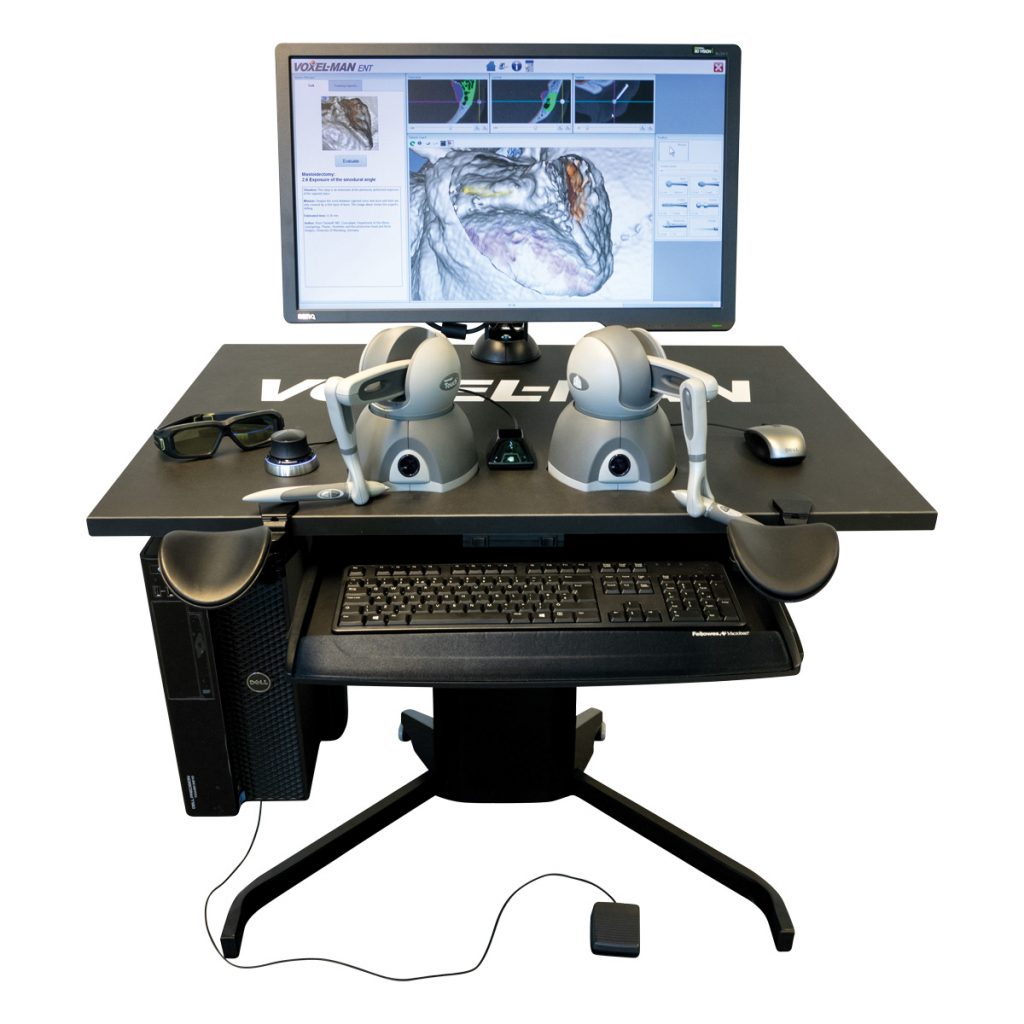

Voxel-Man is a complete VR Surgical Simulation System for temporal bone dissection, endoscopic sinus surgery and adding own cases in CT or CBCT format. The system provides a versatile emulation of a surgical experience: the look, feel and tactile feedback are extremely close to the real intervention.

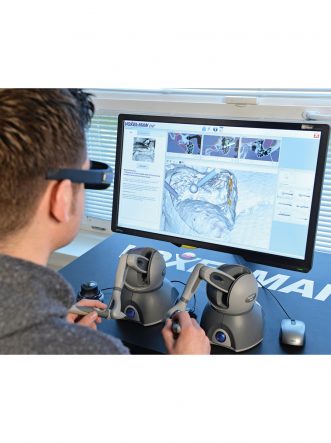

The VR simulation features both one and two-handed operation of instruments such as metal and diamond burs of different sizes or suction. The system offers predefined tasks, automatic skills assessment, visualization of learning curves, video capture as well as online updates. The trainee will quickly acquire a thorough understanding of the surgical anatomy and approaches, all within a safe learning environment.

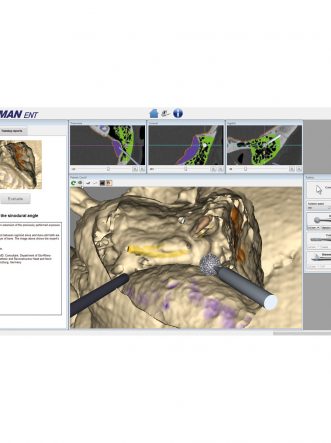

Tempo – the temporal bone drilling simulation:
- Pre-defined training cases of middle ear with different anatomy and pathology
- Structures at risk such as facial nerve, tympanic chord, vestibular labyrinth, cochlea, auditory ossicles, carotid artery, sigmoid sinus and dura are highlighted
- Optional support function provides automatic alerts
- Predefined tasks such as exposure of sigmoid sinus, short process of the incus or facial nerve
- Permanent tracking of instrument movements

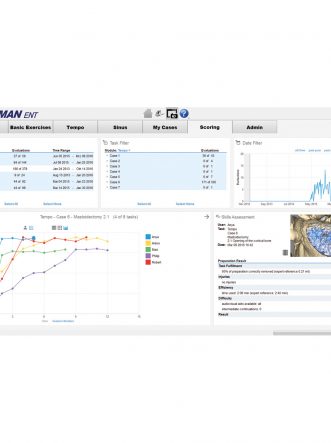

- Automatic skills assessment provides immediate and objective feedback of performance
- Automatic video capture of session provides additional insights
- Learning curves of individuals and groups help monitor and compare progress over time
My Cases – new simulations based on own data
- Upload own clinical or research data from CT or CBCT to create new specialized training cases
- System provides a bone model ready for drilling within minutes
- 3D anatomy may be further enhanced with structures at risk, identified using an advanced interactive segmentation approach
- Your cases can reach the same functionality as predefined training cases
Sinus – the endoscopic sinus surgery simulation
- Allows for simultaneous handling of endoscope and a surgical instrument
- Provides straight and angular endoscopes and various instruments such as Blakesley forceps or debrider
- Structures at risk such as periorbita, optic nerve, optic chiasm, ethmoidal cells, olfactory bulb and internal carotid artery are highlighted
- Names of important landmarks such as the uncinate process are displayed when the endoscope is aimed at them
- Virtual surgical navigation system provides additional cross-sectional CT images
| ENT Basic System | ENT Full System | Dental Full System | |
| 1022079 | 1022080 | 1022081 | |
| Hardware | YES | YES | YES |
|
Workstation computer
|
YES | YES | YES |
|
3D LCD Monitor
|
YES | YES | YES |
|
Two pairs of 3D glasses
|
YES | YES | YES |
|
Force feedback device (handle)
|
1 | 2 | 2 |
|
Space navigator
|
YES | YES | YES |
|
Foot pedal
|
YES | YES | YES |
|
Simulator housing with two arm rests and electrically adjustable height
|
– | YES | YES |
| Software modules | |||
|
“Tempo” for temporal bone drilling exercises
|
YES | YES | – |
|
“My Cases” for adding new simulations based on own CT or CBCT data
|
YES | YES | – |
|
“Sinus” for endoscopic sinus surgery exercises
|
– | YES | – |
|
Two-handed operation with bleeding and suction
|
– | YES | – |
Why Choose the Voxel-Man ENT Full System VR Simulator for Your Simulation Lab in India?
The Voxel-Man ENT Full System VR Simulator from Voxel-Man is a trusted training tool used across simulation labs in India for hands-on ENT surgical training in virtual reality practice. This simulator helps medical students and healthcare professionals build critical competencies in a safe, controlled environment — fully aligned with NMC’s CBME requirements for surgical skills training and competency assessment.
Who Is This Simulator Ideal For?
This product is recommended for surgical skill labs, minimal access surgery training centers, and medical colleges offering hands-on laparoscopic and endoscopic training workshops. Whether you are setting up a new simulation lab or upgrading your existing facility, the Voxel-Man ENT Full System VR Simulator offers an excellent balance of realism, durability, and training value.
Why Buy from SEM Trainers?
SEM Trainers is a leading supplier of medical manikins and simulators across India. Authorized Voxel-Man distributor in India. We provide complete support including pan-India delivery, on-site installation, faculty training workshops, and prompt after-sales maintenance. All our products carry genuine manufacturer warranty and meet ISO 9001 quality standards.
Frequently Asked Questions
Q: Is the Voxel-Man ENT Full System VR Simulator compliant with NMC simulation lab requirements?
A: Yes, this simulator supports the skill-based training competencies specified under NMC’s CBME framework for Indian medical and nursing institutions.
Q: Does SEM Trainers provide installation and training support?
A: Absolutely. We offer on-site installation, hands-on demo sessions, and faculty orientation workshops for every product delivered, anywhere in India.
Q: What is the warranty and how do I get support?
A: All products come with standard manufacturer warranty. For support, reach us at [email protected] or call +91-88495 63724.
